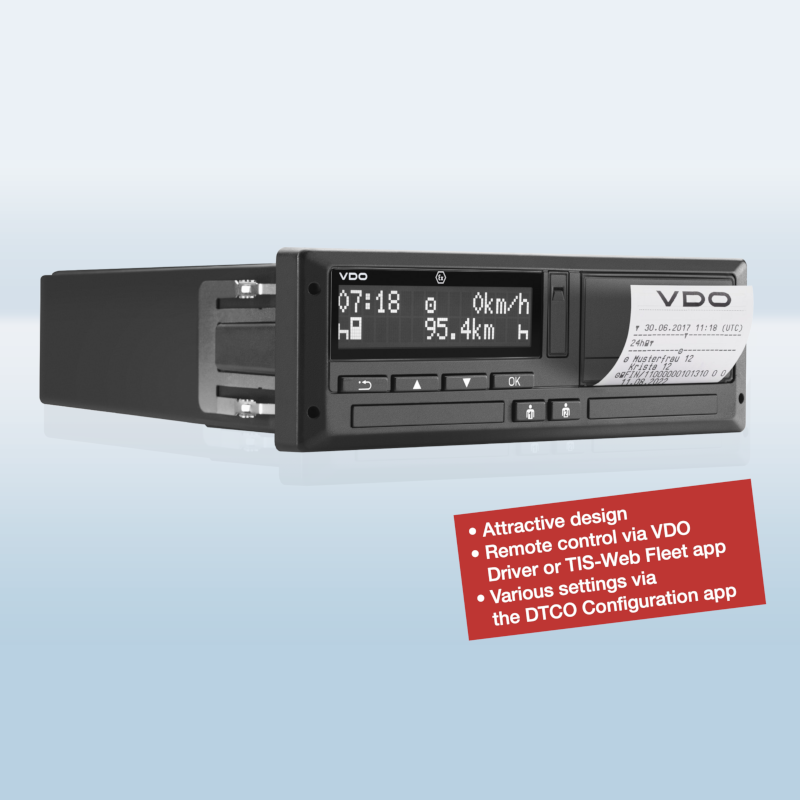

Continental VDO Tachograph DTCO 3.0B - 12-24V - ADRZ2 - CANR 120 Ohm - 250kBd
€746.67
€672.00
(tax incl.)
€555.37 tax excl.
Part-number:
1381-7550303005-AAA2424440021
- EU Digital Tachograph 3.0B
- CAN 2 Integrated
- IMS Function: Integrated
- Display Illumination: White dimmable
- CAN Resistor 120 Ohm
- ADR Class: Zone 2 Only Cabine
Logistical information:
- Weight: 1.00kg
AAA2424440021
Data sheet
- Installation dimension
- 1-DIN Radio Size
- Category
- Digitale EU Smart Tachographs
- Serie
- VDO DTCO 1381 3.0A EU GGVS
- Operating voltage
- 12-24 Volt DC
- Part status - Delivery time
- Delivery time on request
- Packaging
- VDO DTCO 3.0 Retail Package
- Connector type
- 4x 8-Pin Mini Timer
- Sensor type
- Kitas 2171 - Kitas4
- Lead free
- According to RoHS regulation
- Tachograph ADR Class
- Zone 2 - Only Cabin
- CANBus Resistor
- 120 Ohm Integrated
- Tachograph V and N
- Integrated
- Tachograph IMS
- Integrated
- Tachograph HMI Counter
- Counter default enabled
- CANBus 2
- Integrated
- Display Illumination
- White dimmable
- DSRC Function
- Not possible
- Smartphone compatible
- Option: Smartlink Apple - Android
- Remote download
- Option: Proconnect - DLD
- Data speed
- 125 - 250 - 500 kBd Baudrate
- Tachograph EU Legislation
- Complies with Annex 1B
- GNSS Function
- Not possible
- D1 and D2 Function
- Integrated
- ITS-Interface
- Not possible
